Chaoya představuje 370 motoru s ohraničením o rozloze 25 mm, což je kompaktní a krásný motor s nízkou rychlostí a nízkým hlukem. Tento GearMotor má širokou škálu aplikací a lze jej používat v produktech, jako jsou roboty, kávovary, elektrické nářadí, vybavení pro domácnost a kancelářské vybavení. Gearmotor 25mm 370 má vysoký výkon točivého momentu při nízkých rychlostech, aby splňoval příslušný točivý moment a široký rozsah redukčních poměrů, které odpovídají parametrům výkonu k požadavkům produktu zákazníka. Současně má tento motor vysokou účinnost a dlouhou životnost, vynikající výkonnost produktu pro většinu zákazníků si vybrat.

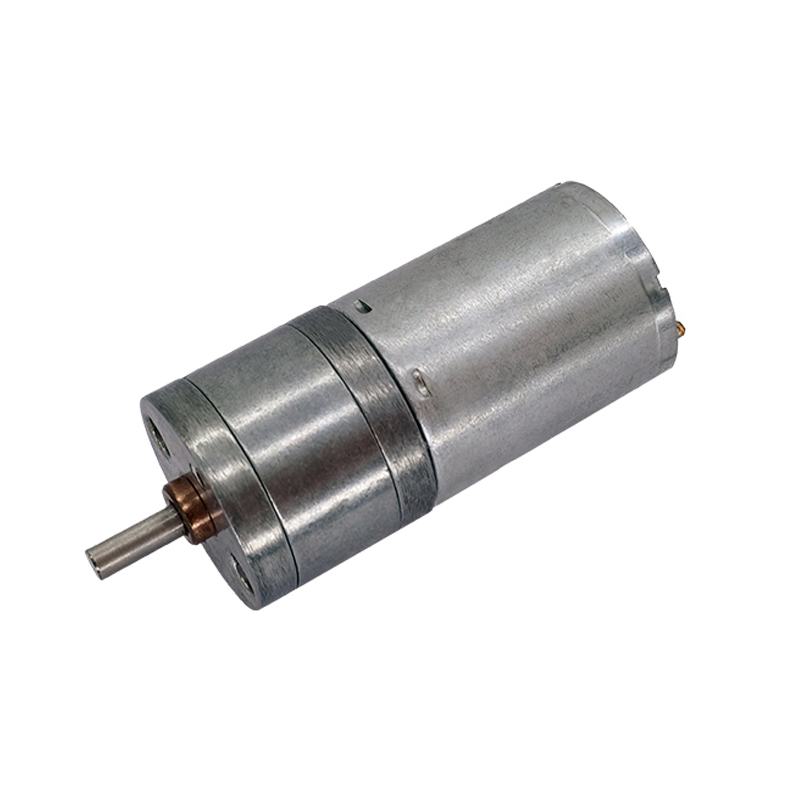

Chaoya has a diameter of about 25mm, with 370 gear motor products.This 25mm Brushed Geared 370 Motor is compact and has a fine appearance, does not take up too much space in the adapted product, and can be matched with other products efficiently. The 25mm Brushed Geared 370 Motor has a low rotational speed and low noise, and is configured to deliver a large torque output through spur gear reduction.
Chaoya's 25mm Brushed Geared 370 Motor can be adapted to a wide range of products, and the degree of adaptability to the relevant product is very much related to the performance parameters required by the product. This geared motor can be used in products such as machine coffee makers, power tools, home appliances and office equipment. This gearmotor can be used in products such as coffee machines, power tools, home appliances and office equipment.
Chaoya's 25mm Brushed Geared 370 Motor have a variety of gear ratio options to choose from, a wider range of speed ratios, can provide customers with a wider range of motor options naturally, at the same time, the 25mm Brushed Geared 370 Motor has a high efficiency and long life, the majority of customers can also be with the needs of the selection of the appropriate motor products.
Motor Parameters: | |||||||||||
Model | Voltage(V) | No Load Rotating Speed(rpm) | No-load current(mA) | Load torque(gf.cm) | Load Rotating Speed(rpm) | Load Current(A) | |||||
RC370 | 12 | 5300 | 60 | 37 | 4700 | 0.3 | |||||
Motor +GearBox Parameters: | |||||||||||
Gear Motor Model | Reducer Ratio | 15 | 20 | 34 | 44 | 59 | 103 | 130 | 226 | 498 | / |
25GA-RC370 | No Load Rotating Speed(rpm) | 353 | 265 | 156 | 120 | 90 | 51 | 41 | 23 | 11 | / |
Rated Torque(kgf.cm) | 0.38 | 0.5 | 0.75 | 0.98 | 1.16 | 2.02 | 2.21 | 3.85 | 8 | / | |
Rated Rotating Speed(rpm) | 313 | 235 | 138 | 107 | 80 | 46 | 36 | 21 | 9 | / |
